- Electricity

What is an electrical circuit?
An electrical circuit is a path or line through which an electrical current flows. The path may be closed (joined at both ends), making it a loop. A closed-circuit makes electrical current flow possible. It may also be an open circuit, where the flow of electrons is cut because the path is broken. An open circuit does not allow electrical current to flow.
Below is a basic set of symbols that you may find on circuit diagrams.

Note the parts of a simple circuit and the symbols that relate to them. A simple circuit has conductors, a switch, a load, and a power source. Here are the functions of each part:
Conductors: These are usually copper wires with no insulation. They make the path through which the electricity flows. One piece of the wire connects the current from the power source (cell) to the load. The other piece connects the load back to the power source.
Switch: The switch is simply a small gap in the conductor where you can close or open the circuit. When the switch is closed the circuit is closed, and electricity flows.
The Load: The load is a small light bulb or buzzer that lights when the circuit is turned on. The load is also known as a resistor.
Cell: The power source is a cell. (More than one cell put together is known as a battery)

There are two types of circuits, namely Series Circuit and Parallel Circuit.
We've updated our privacy policy. Click here to review the details. Tap here to review the details.
Activate your 30 day free trial to unlock unlimited reading.
Simple circuit diagram

You are reading a preview.
Activate your 30 day free trial to continue reading.

Check these out next

Download to read offline
Presentation of the lesson
Recommended

More Related Content
Slideshows for you (20).

Similar to Simple circuit diagram (20)

Recently uploaded (20)

- 1. SIMPLE CIRCUIT DIAGRAM SERIES AND PARALLEL
- 2. WHAT IS A CIRCUIT ? A circuit is a closed loop or a complete course of conductors through which current can travel. • Most basic circuit you can get is a power source and a load (something to use the current). Ex. Battery (power source), Light bulb (load), Wire (use to connect them) • Current flow is positive going (red colored wire)
- 3. SERIES CIRCUIT • A series circuit is a circuit where there is only one path from the source through all of the loads and back to the source. This means that all of the current in the circuit must flow through all of the loads.
- 4. SCHEMATIC DIAGRAM • A schematic, or schematic diagram, is a representation of the elements of a system using abstract, graphic symbols rather than realistic pictures. • A schematic usually omits all details that are not relevant to the information the schematic is intended to convey, and may add unrealistic elements that aid comprehension.
- 5. SCHEMATIC SYMBOLS Connecting Wire Bulb Switch Battery
- 6. SCHEMATIC DIAGRAM REPRESENTATION Schematic Pictorial (series)
- 7. PARALLEL CIRCUIT - A parallel circuit has two or more paths for current to flow through. - Voltage is the same across each branch/component of the parallel circuit. - The charge divides into multiple pathways, passing through only one of the branches. Any charge that passes through Bulb 1, will not pass through Bulb 2 or Bulb 3.
- 8. SCHEMATIC DIAGRAM REPRESENTATION Schematic Pictorial (parallel)
- 9. DIFFERENTIATE SERIES FROM PARALLEL CIRCUIT Series Circuit • the current through each of the components is the same. • the voltage across the circuit is the sum of the voltages across each component. • Current is constant Parallel Circuit • the total current is the sum of the currents through each component. • the voltage across each of the components is the same. • Voltage is constant
- 10. END PREPARE FOR A SHORT QUIZ
Share Clipboard
Public clipboards featuring this slide, select another clipboard.
Looks like you’ve clipped this slide to already.
You just clipped your first slide!
Create a clipboard
Get slideshare without ads, special offer to slideshare readers, just for you: free 60-day trial to the world’s largest digital library..
The SlideShare family just got bigger. Enjoy access to millions of ebooks, audiobooks, magazines, and more from Scribd.

You have now unlocked unlimited access to 20M+ documents!
Unlimited Reading
Learn faster and smarter from top experts
Unlimited Downloading
Download to take your learnings offline and on the go
Instant access to millions of ebooks, audiobooks, magazines, podcasts and more.
Read and listen offline with any device.
Free access to premium services like Tuneln, Mubi and more.
Help us keep SlideShare free
It appears that you have an ad-blocker running. By whitelisting SlideShare on your ad-blocker, you are supporting our community of content creators.
We've updated our privacy policy.
We’ve updated our privacy policy so that we are compliant with changing global privacy regulations and to provide you with insight into the limited ways in which we use your data.
You can read the details below. By accepting, you agree to the updated privacy policy.

Simple Circuits
Simple Circuits. A simple circuit contains the minimum things needed to have a functioning electric circuit. A simple circuit requires three things: voltage source conductive path resistor electrical device to use the energy. Simple Circuits. Some review:

- Tannar Costello
- electric circuit
- voltage source
- conductive path
- parallel circuits
- series circuits
- More by User
Presentation Transcript
Simple Circuits • A simple circuit contains the minimum things needed to have a functioning electric circuit. A simple circuit requires three things: • voltage source • conductive path • resistor • electrical device to use the energy
Simple Circuits • Some review: • The charges are positive so this is Conventional Current. • The charges are only flowing in one direction so this would be considered direct current ( D.C. ).
Simple Circuits - Energy • In this animation you should notice the following things: • The battery or source is represented by an escalator which raises charges to a higher level of energy. • As the charges move through the resistor (represented by the paddle wheel) they do work on the resistor and as a result, they lose energy. • By the time each charge makes it back to the battery, it has lost all the energy given to it by the battery. This demonstrates that a charge can only do as much work as was done on it by the battery. The wires are ignored in terms of energy loss.
Series and Parallel Circuits • What is the difference between a series circuit… • and a parallel circuit?
Series Circuit • A series circuit has more than one resistor and gets its name from only having one path for the charges to move along. • Charges must move in "series" first going to one resistor then the next. • If one of the items in the circuit is broken then no charge will move through the circuit because there is only one path.
Series Circuits • The following rules apply to a series circuit: • The sum of the potential drops equals the potential rise of the source. • The current is the same everywhere in the series circuit. • The total resistance of the circuit is equal to the sum of the individual resistances.
For the circuit shown, determine (a) the equivalent resistance, (b) the currents through each resistor, and (c) the voltage drops across each resistor. Problem #1
Parallel Circuits • A parallel circuit has more than one resistor (and gets its name from having multiple (parallel) paths to move along. • Charges can move through any of several paths. • If one of the items in the circuit is broken then no charge will move through that path, but other paths will continue to have charges flow through them. • Parallel circuits are found in most household electrical wiring.
Parallel Circuits • The following rules apply to a parallel circuit: • The potential drops of each branch equals the potential rise of the source. • The total current is equal to the sum of the currents in the branches. • The inverse of the total resistance of the circuit is equal to the sum of the inverses of the individual resistances.
For the circuit shown, determine (a) the equivalent resistance, (b) the currents through each resistor, and (c) the voltage drops across each resistor. Problem #2

Create a Simple Circuit Science Projects (10 results)
Connect an electric circuit and experiment with how to improve it. Create a neat tool, like a lightbulb, electromagnet that picks up paperclips, or even a radio that can receive real radio stations.
Explore Our Science Videos


- Preferences

Simple Circuits. - PowerPoint PPT Presentation

- Simple Circuits.
Thus,the characteristic of the series connection is easily obtained graphically; ... Kirchoff's laws, the parallel connection has a characteristic described by ... – PowerPoint PPT presentation
- Series connection of resistors.
- Parallel connection of resistors.
- Series and Parallel connection of resistors.
- Small signal analysis.

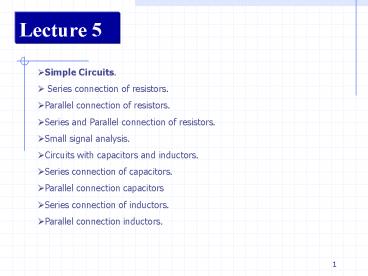

- Circuits with capacitors and inductors.
